Dehydration Column Main Condenser

Dehydration Column Main Condenser

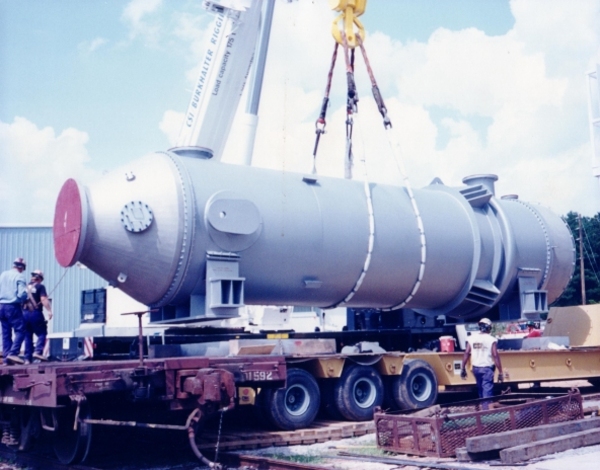

This heat exchanger is one that we did back in 1993. It is a BEM shell and tube heat exchanger. It is one of the larger units that we produce. Once this unit was put in service, it was vertical in orientation. It is a dehydration column main condenser. This unit had 28 1/2 miles of tubes in it and weighed 180,000 pounds.
